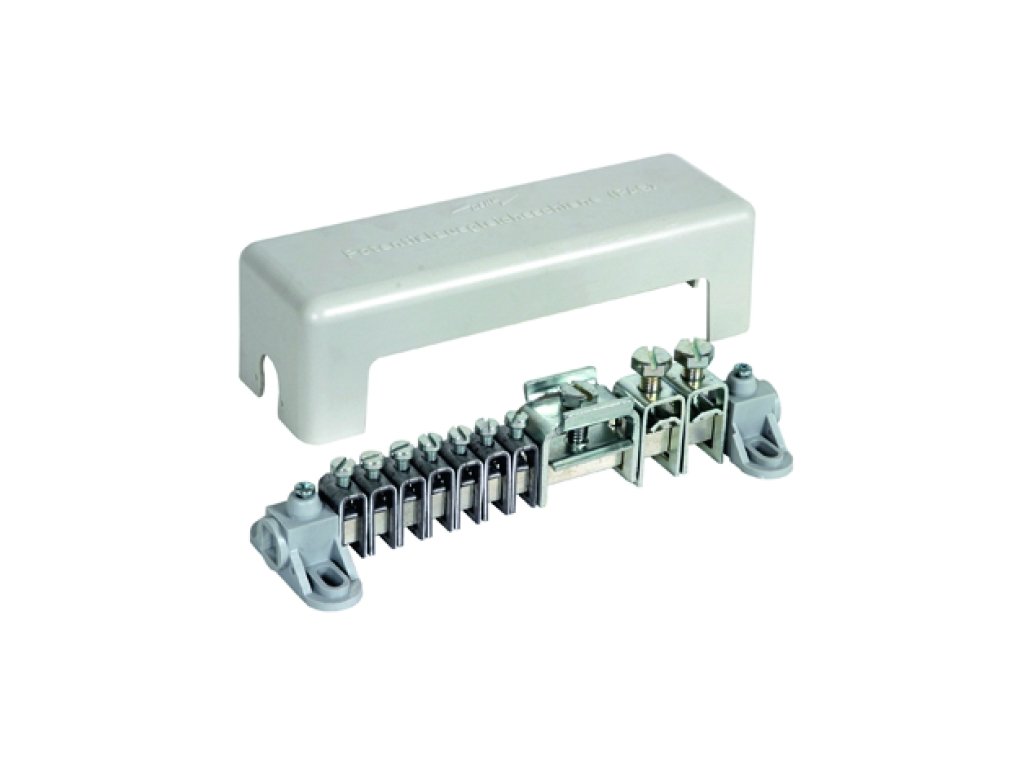

Equipotential bonding bar with cover 7x 2.5-25mm² 2x16-95mm² 1x Fl 40x5mm
Artikelnummer: 563040Detaillierte Produktbeschreibung
Equipotential bonding busbar according to EN 62561-1 for protective and functional equipotential bonding according to IEC 60364-4-41/60364-5-54 (DIN VDE 0100- 410/540) (main earthing busbar) and lightning equipotential bonding according to IEC/EN 62305-3. Design D, tested according to DIN VDE 0609, terminal block St/gal Zn, grey plastic bar frames and cover (halogen-free), cover is sealable and can be labelled.Zusätzliche Parameter
| Kategorie: | Import |
|---|---|
| Gewicht: | 0.467 kg |
| EAN: | 4013364082861 |

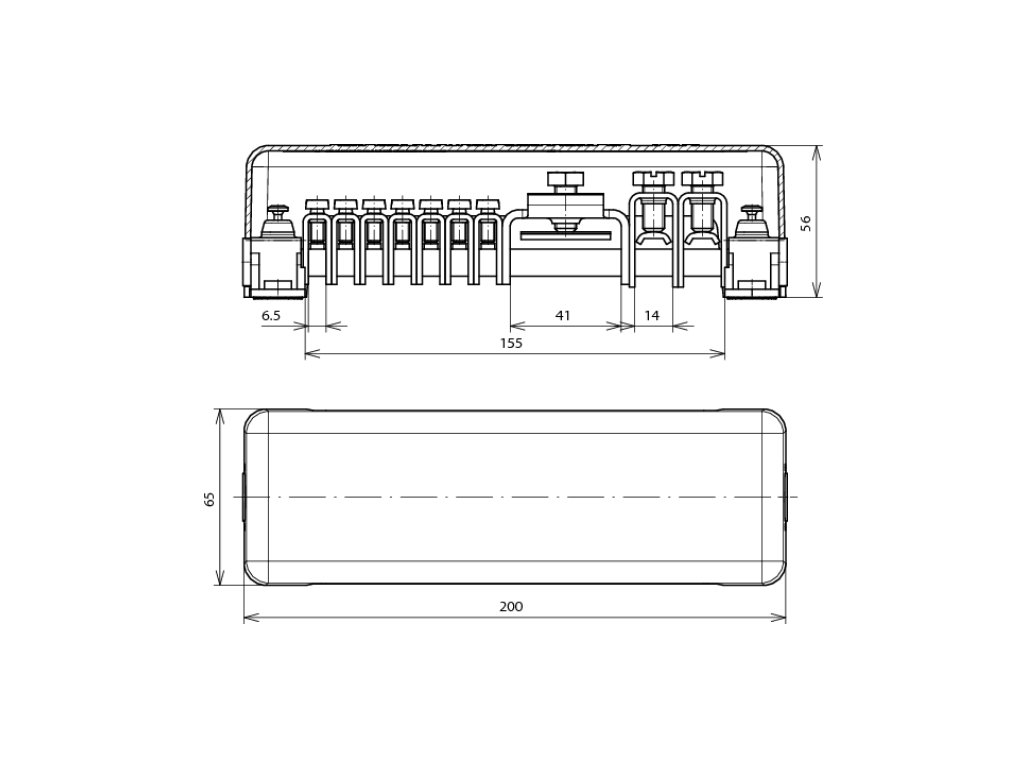

| Height: | 60 |
| Konštrukcia: | Modulárna montáž |
| Length: | 200 |
| Materiál kontaktnej lišty: | Mosadz |
| Materiál svorky: | Oceľ |
| Number of connections conductor to 25 mm² fixed: | 7 |
| Number of connections conductor to 95 mm² fixed: | 2 |
| Number of connections flat conductor 40 mm: | 1 |
| Povrch kontaktnej koľajnice: | Galvanicky pocínované |
| Povrch svorky: | Galvanicky/elektrolyticky pozinkované |
| Vyhotovenie: | S krytom |
| Width: | 65 |
