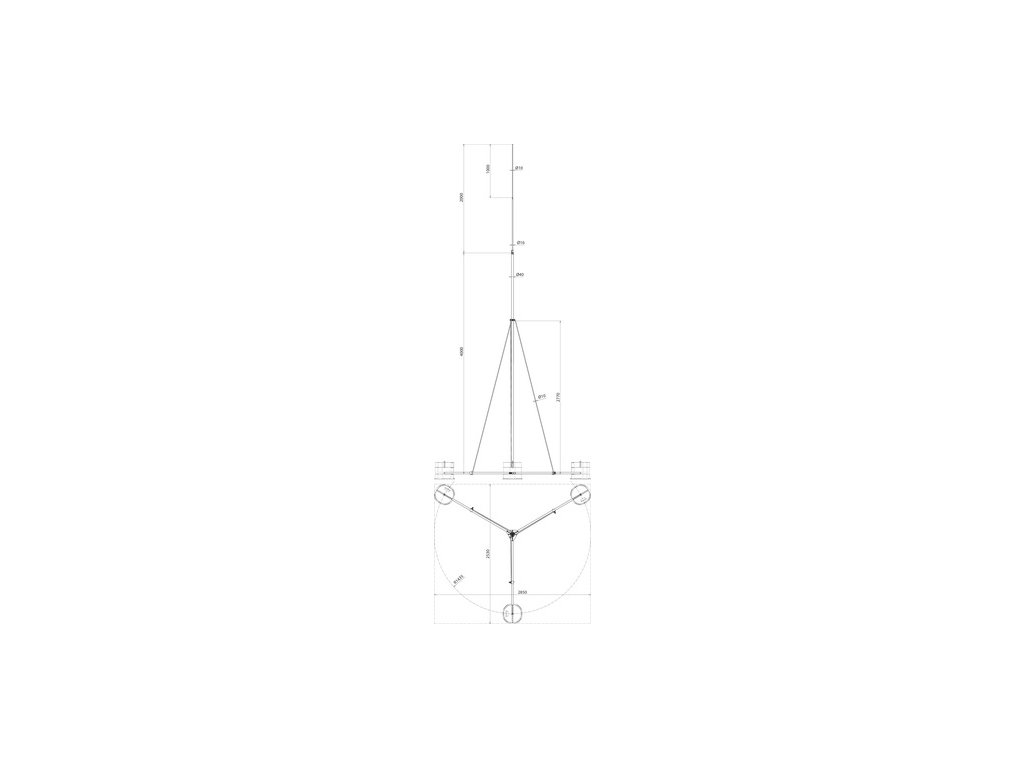

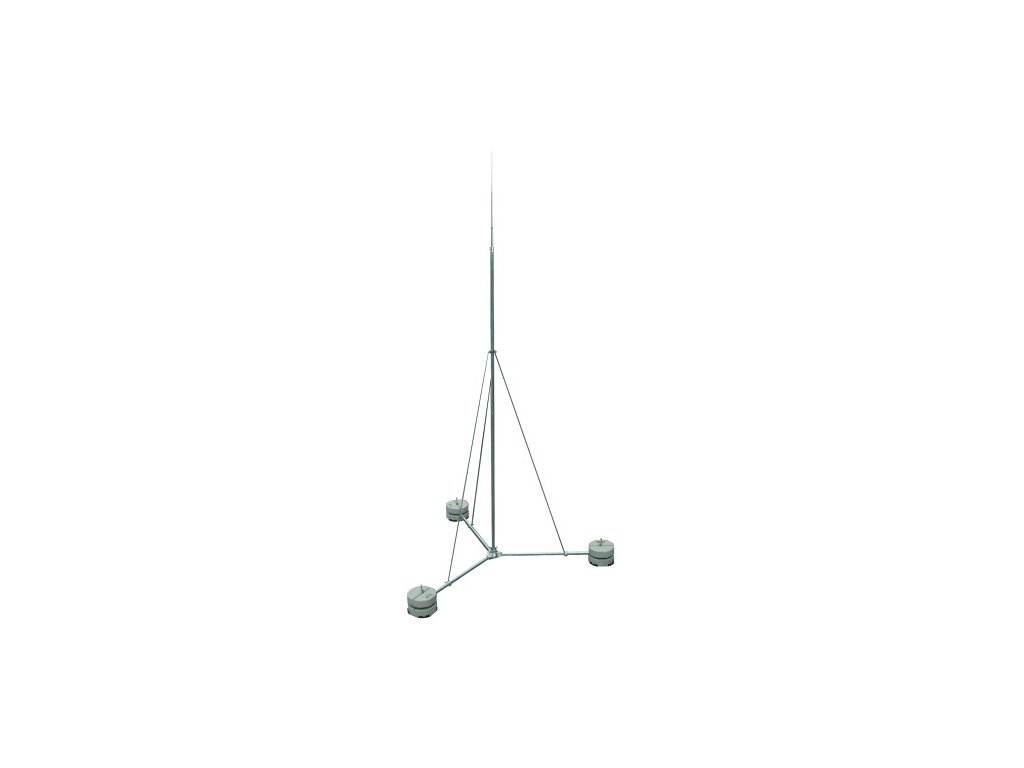

Air-term. rod D 40/22/16/10 mm L 9 m Al with tripod R 1435 mm St/tZn
Code: 105900Product detailed description
Self-supporting air-termination rod with hinged tripod and adjustable StSt braces, tested according to EN 62561-(1+2), to protect larger roof-mounted structures, adjustable to a roof inclination up to max. 10°. The air-termination rods are dimensioned according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA) for a max. gust wind speed of 142 km/h. Height of 9000 mm, including connection clamp for round conductors 6-10 mm.Additional parameters
| Category: | Import |
|---|---|
| Weight: | 33.29 kg |
| EAN: | 4013364240766 |
| Diameter: | 10-40 |
| Length: | 9000 |
| Materiál: | Hliník |
| Povrch: | Bez ošetrenia |
| Prípojka: | Kruhový vodič |
| Vyhotovenie: | Záchytná tyč |
