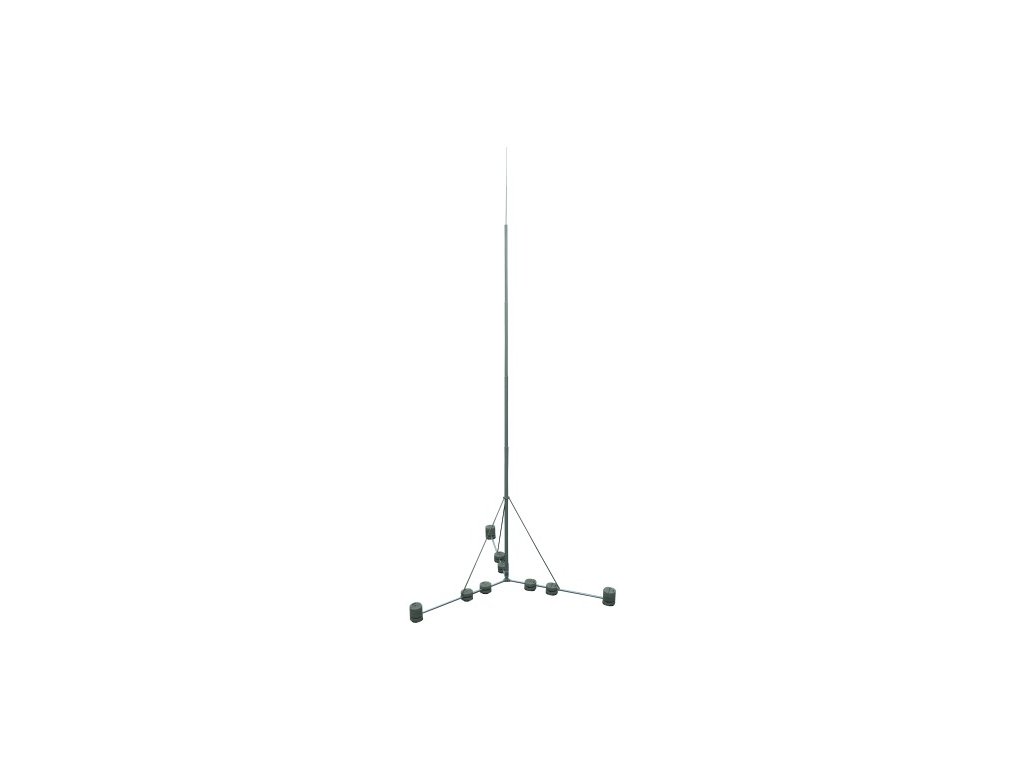

Air-termination rod L 14m w. fixing kit and hinged tripod R 3000mm
Code: 105924Product detailed description

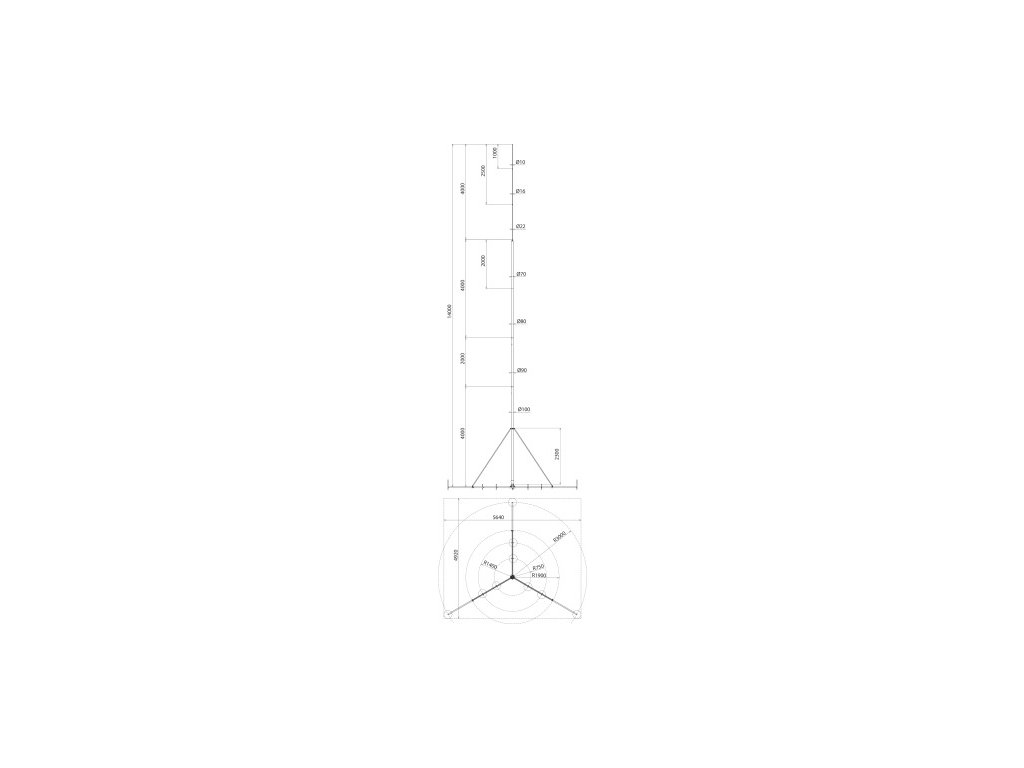

Self-supporting air-termination rod with hinged tripod and StSt braces (20 x 20 x 2mm), tested according to EN 62561-(1+2), for protecting larger roof-mounted structures or erection on compacted ground without foundation works, adjustable to an inclination of max. 5°. The air-termination rods are according to Eurocode 1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA) dimensioned for a max. gust wind speed of 139 km/h. Height 14000 mm, including double cleat for 2x Rd 8-10 mm.Additional parameters
| Category: | Import |
|---|---|
| Weight: | 103.31 kg |
| EAN: | 4013364242104 |
| Diameter: | 10-100 |
| Length: | 14000 |
| Materiál: | Hliník |
| Povrch: | Bez ošetrenia |
| Prípojka: | Kruhový vodič |
| Vyhotovenie: | Záchytná tyč |
