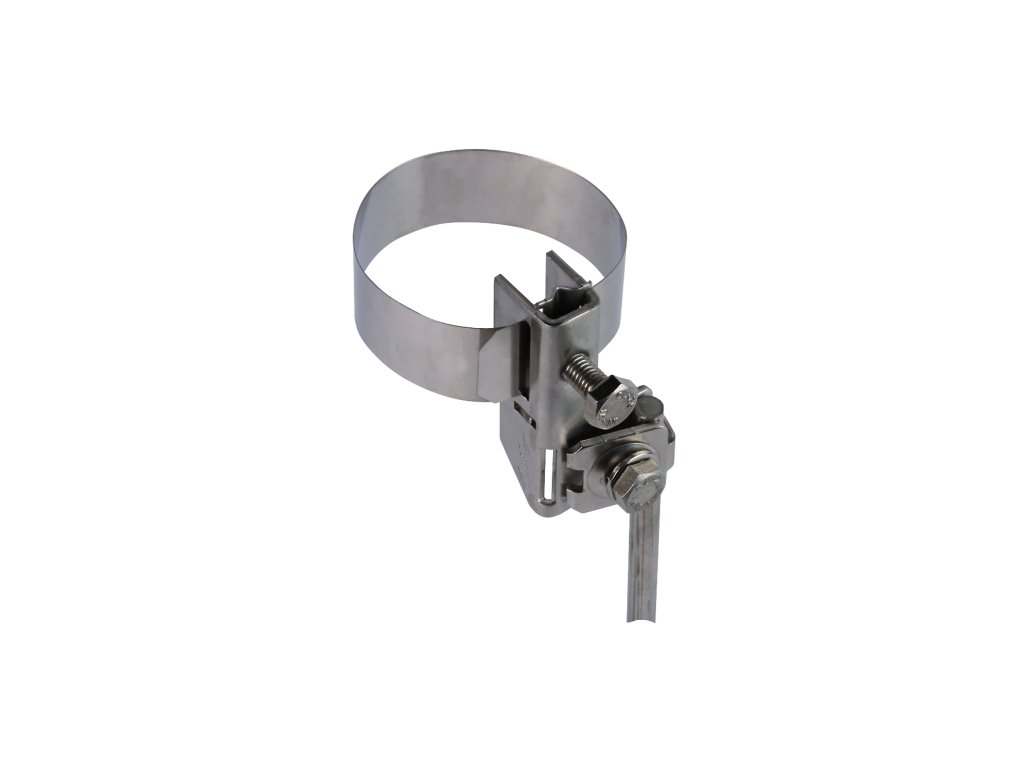

Antenna pipe clamp D 16-89mm StSt w. connection f. Rd 6-8/10 or 4-50mm²
Code: 540103Product detailed description
Antenna pipe clamp according to EN 62561-1, for integrating pipes into the protective and functional equipotential bonding according to IEC 60364-4-41/60364-5-54 (DIN VDE 0100-410/540) and lightning equipotential bonding according to IEC/EN 62305-3. Complete version, with infinitely adjustable StSt tensioning strap, for connecting 1 conductor Rd D10 mm or 1-2 conductors Rd D6-8 mm or 4-50 mm² (solid / stranded).Additional parameters
| Category: | Import |
|---|---|
| Weight: | 0.098 kg |
| EAN: | 4013364101302 |
| Clamping/chucking range: | 16-89 |
| Diameter holding interception rod: | 6-8 |
| Materiál: | Nehrdzavejúca oceľ (V2A) |
| Max. rozsah upínania palca: | 3 palce |
| Min. rozsah upínania palca: | 3/8 palca |
| Povrch: | Bez ošetrenia |
