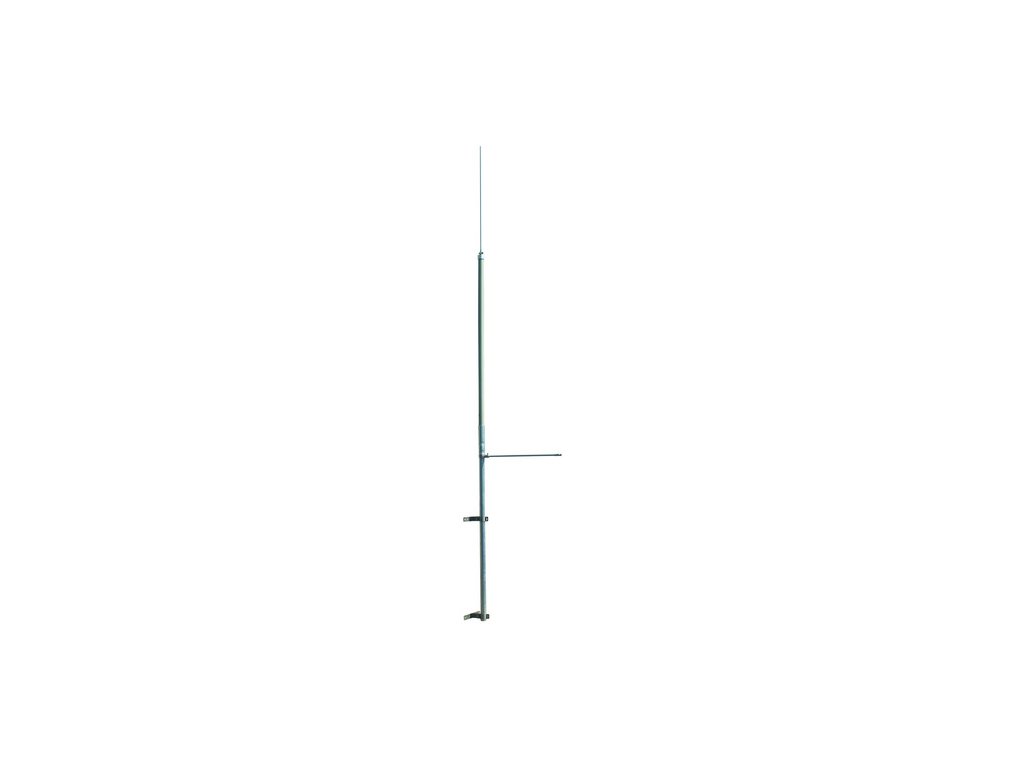

DEHNiso Combi air-termination rod -KIT- with mounting bracket D 50mm L 4200mm
Code: 105440Related products
Product detailed description
DEHNiso Combi set for isolated air-termination systems for protecting larger roof-mounted structures, e.g. air-conditioning systems, heat exchangers, etc. For keeping the separation distance from conductive parts according to EN 62305-3. Tubes D50 mm and spacer bar D16 mm made of glass-fibre reinforced plastic (GRP), UV-stabilised, light grey colour, material factor km = 0.7. One-piece, total height 4200 mm, complete with air-termination tip, supporting tube, wall mounting bracket and spacer.Additional parameters
| Category: | Import |
|---|---|
| Weight: | 7.64 kg |
| EAN: | 4013364099692 |
| Diameter: | 10-50 |
| Length: | 4200 |
| Materiál: | Hliník |
| Povrch: | Bez ošetrenia |
| Prípojka: | Kruhový vodič |
| Vyhotovenie: | Záchytná tyč |
| Vysokonapäťovo stabilné izolované vyhotovenie: | Nie |
