DEHNiso-Combi air-termination rod -SET- with mounting bracket D 50mm L 5700mm
Code: 105455Related products
Product detailed description

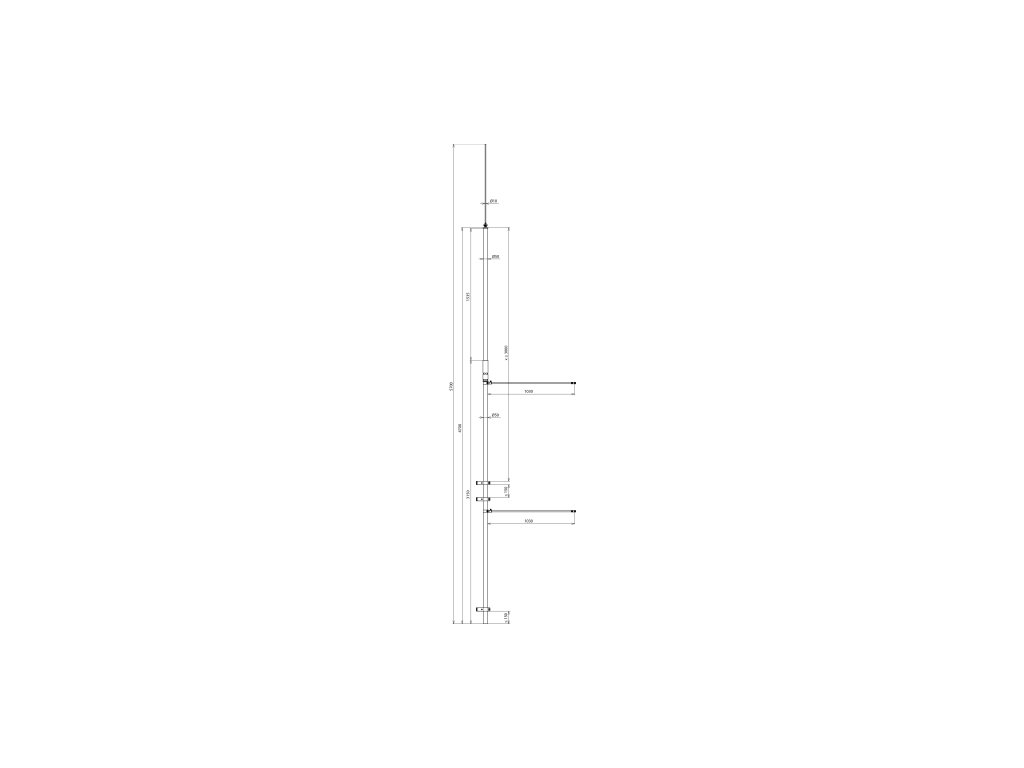

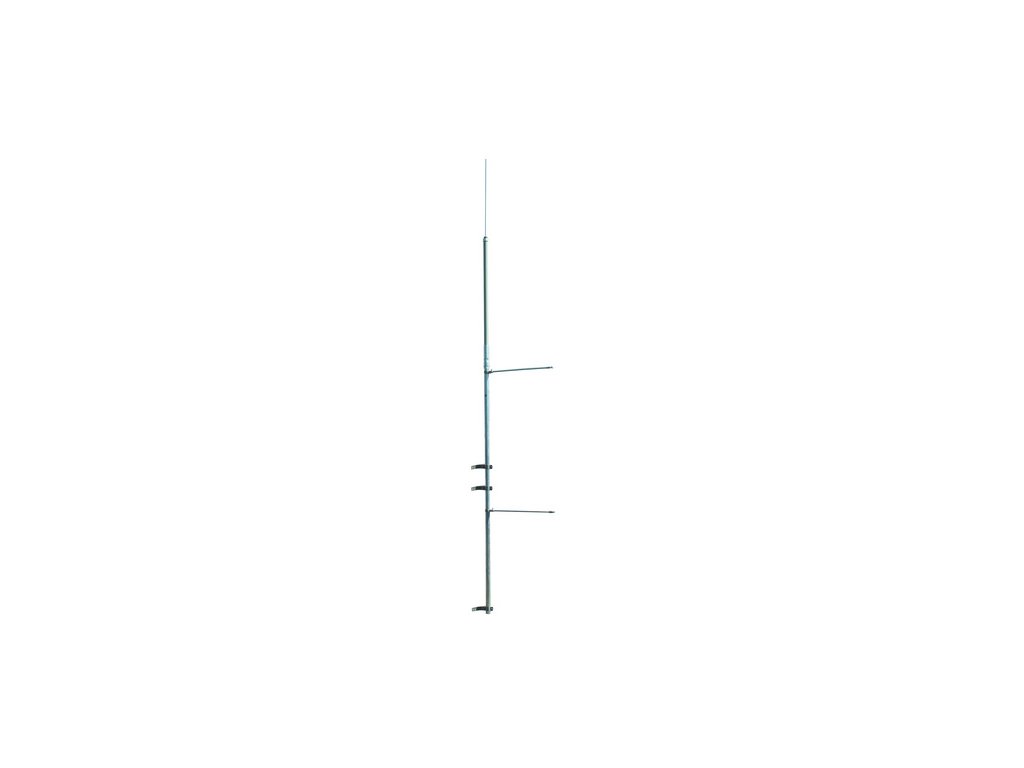

DEHNiso Combi set for isolated air-termination systems for protecting larger roof-mounted structures, e.g. air-conditioning systems, recooling plants etc. For keeping the separation distance from conductive parts according to DIN EN 62305-3. Tubes D50 mm and spacer bar D16 mm made of glass-fibre reinforced plastic (GRP), UV-stabilised, light grey colour, material factor km = 0.7. One-piece, total height 5700 mm, complete with air-termination tip, supporting tube, wall mounting bracket and spacer.Additional parameters
| Category: | Import |
|---|---|
| Weight: | 11.45 kg |
| EAN: | 4013364099715 |
| Diameter: | 10-50 |
| Length: | 5700 |
| Materiál: | Hliník |
| Povrch: | Bez ošetrenia |
| Prípojka: | Kruhový vodič |
| Vyhotovenie: | Záchytná tyč |
