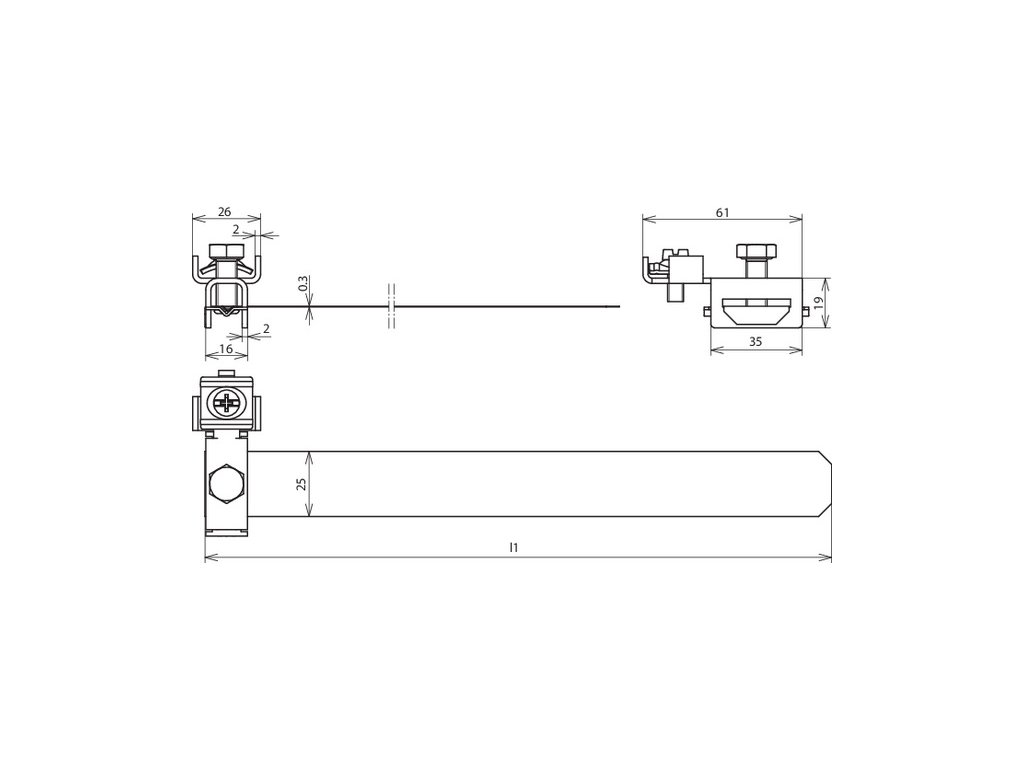

Earthing pipe clamp D 27-114mm with connection clamp 2 x 4-25mm² StSt
Code: 540911Product detailed description
Earthing pipe clamp for integrating pipes into the protective and functional equipotential bonding according to IEC 60364-4-41/60364-5-54 (DIN VDE 0100-410/540). Type Standard, with continuously adjustable StSt tensioning strap, for connecting 1 or 2 conductors or through-wiring, connection cross-section 4-25 mm².Additional parameters
| Category: | Import |
|---|---|
| Weight: | 0.055 kg |
| EAN: | 4013364025691 |
| Clamping/chucking range: | 27-114 |
| Cross section of the connecting conductors: | 4-25 |
| Materiál: | Nehrdzavejúca oceľ (V2A) |
| Max. rozsah upínania palca: | 4 palce |
| Min. rozsah upínania palca: | 3/4 palca |
| Number of conductors: | 2 |
| Povrch: | Bez ošetrenia |
