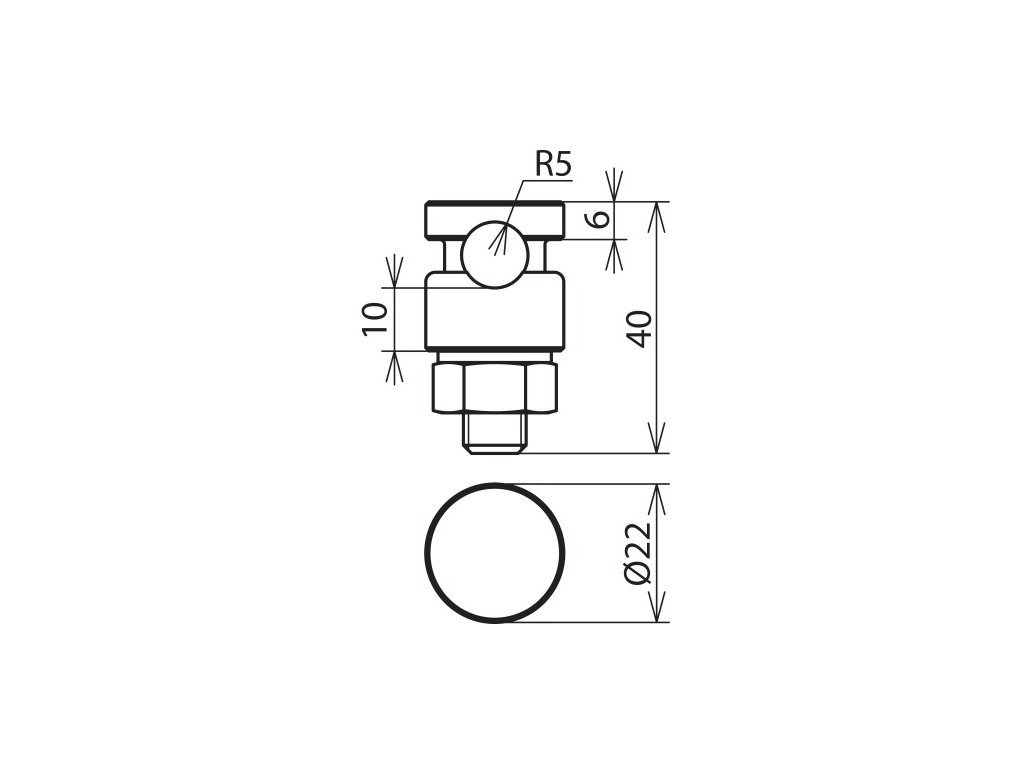

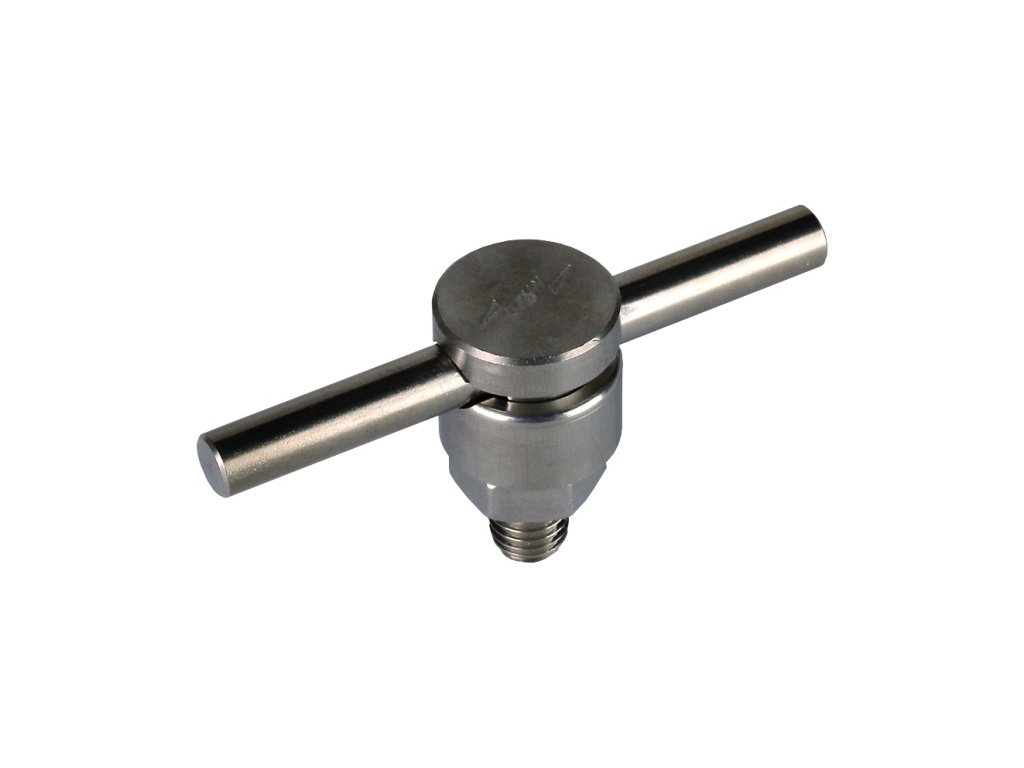

KS connector StSt f. Rd 6-10mm single- part unit with spring washer
Code: 301019Product detailed description
Clamping screw connector according to DIN EN 62561-1, for lightning current carrying connection of round conductors, e.g. to flat profiles, downpipe clamps or other parts of the lightning protection system, one-piece, StSt, with screw, spring washer and nut M10.Additional parameters
| Category: | Import |
|---|---|
| Weight: | 0.061 kg |
| EAN: | 4013364081277 |
| Diameter round conductor 1: | 6-10 |
| Lightning current load-bearing capacity (10/350 µs): | 100 |
| Materiál: | Nehrdzavejúca oceľ (V2A) |
| Povrch: | Bez ošetrenia |
| Typ konektora: | Konektor |
| Typ upevňovacích skrutiek: | Upínacia svorka |
