Three-pole earthing and short-circuiting cable 95mm² with crimped cable lugs
Code: VLB2F3GProduct detailed description

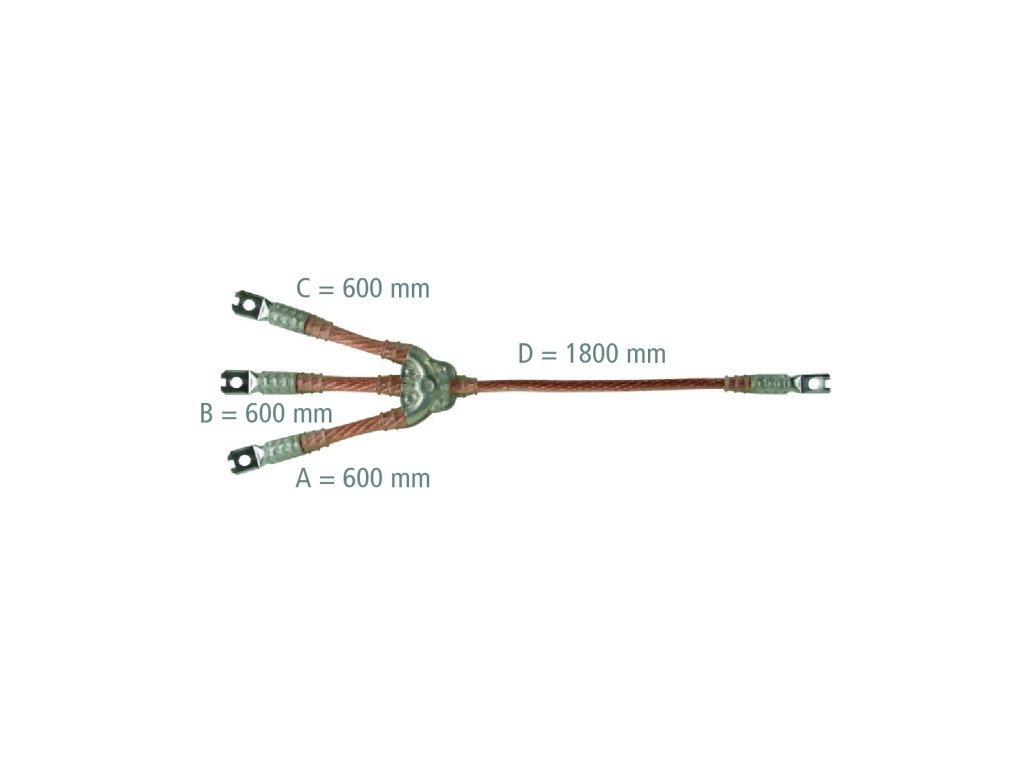

Three-pole earthing and short-circuiting cables with unequipped phase and earth cable ends to be fitted with adequate clamps in accordance with EN/IEC 61230 (DIN VDE 0683-100). Cable cross-section: 95/35 mm2, max. short-circuit current: 26.5 kA / 0.5 s, cable length A = 600 mm, B = 600 mm, C = 600 mm and D = 1800 mm, variant No.: VLB2F3G. Earthing and short-circuiting devices can be configured online via the earthing and short-circuiting configurator at www.dehn.de/en/euk.Additional parameters
| Category: | Import |
|---|---|
| Weight: | 3.834 kg |
| EAN: | 4013364163607 |
| Length earth line: | 1800 |
| Length phaseline a: | 600 |
| Length phaseline b: | 600 |
| Length phaseline c: | 600 |
| Materiál: | Meď |
| Max. short circuit current: | 26.5 |
| Number of poles: | 3 |
| Plne izolované: | Nie |
| Pripojovací diel na strane fázy: | Bez |
| Pripojovací diel na strane uzemnenia: | Bez |
| Vyhotovenie: | Kábel |
| Wire cross section, earth-side: | 35 |
| Wire cross section, phase-side: | 95 |
